Reactors, Filters & Power-Quality Equipment
Reactors, harmonic filters, capacitors, up to 35 kV
A complete power-quality line from our partner factory, an established reactor and filter manufacturer exporting to 50+ countries, covering harmonic mitigation, power-factor correction, and drive-side filtering up to 35 kV.
Typical applications: VFD line/load filtering, data-center and industrial harmonic compliance to IEEE 519, and power-factor correction banks.
Technical range
| Input / output AC reactors | Up to 1,000 V, 450 kW, impedance 1–6% |
|---|---|
| DC link reactors | 500 – 1,000 V DC, up to 1,000 A |
| Sine-wave filters | Up to 690 V, 132 kW |
| Passive harmonic filters | Up to 415 V, 450 kW; THDi < 5% / 8% / 12% |

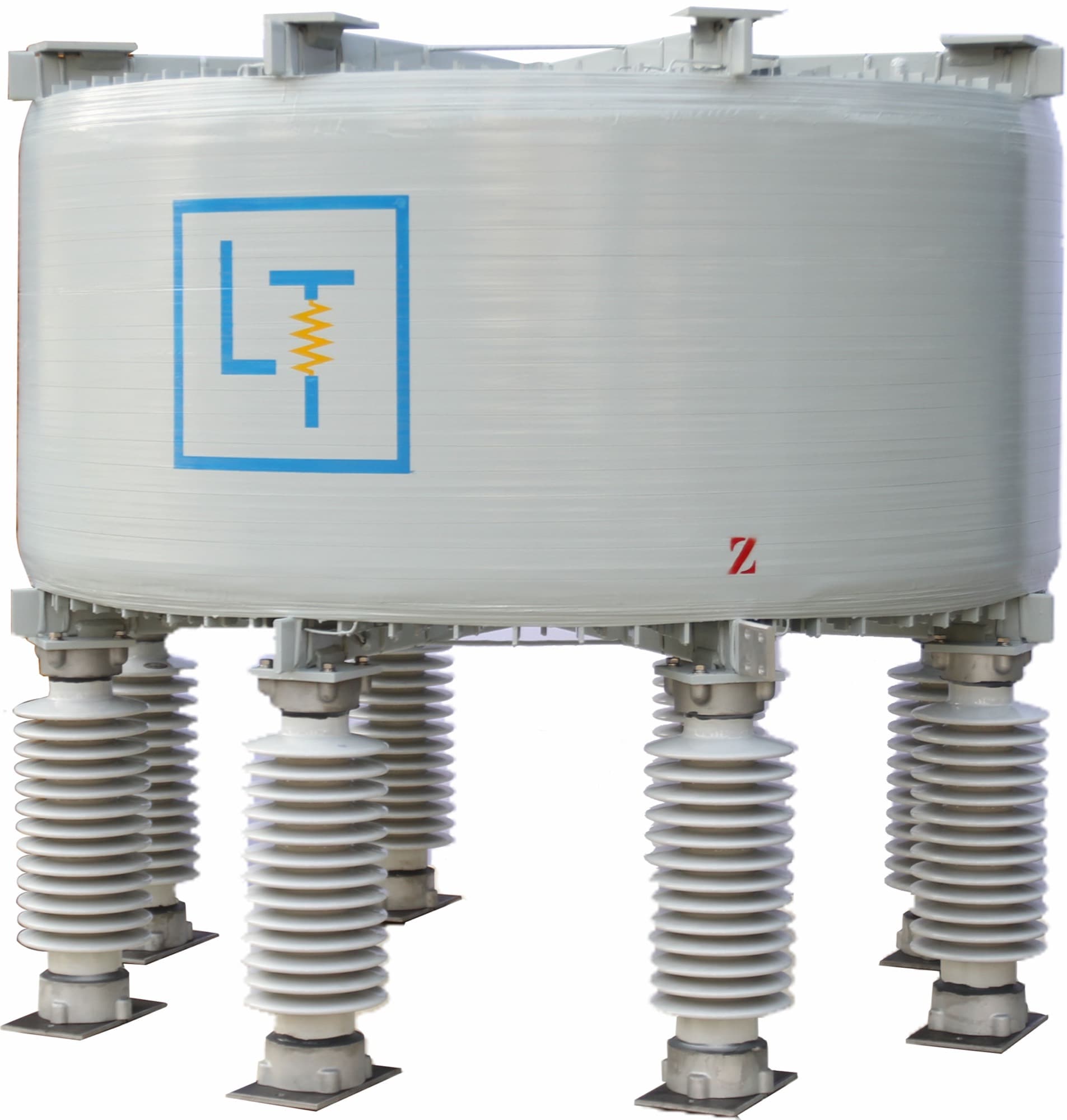

| Detuned & filter reactors | LV and MV, for PFC banks |

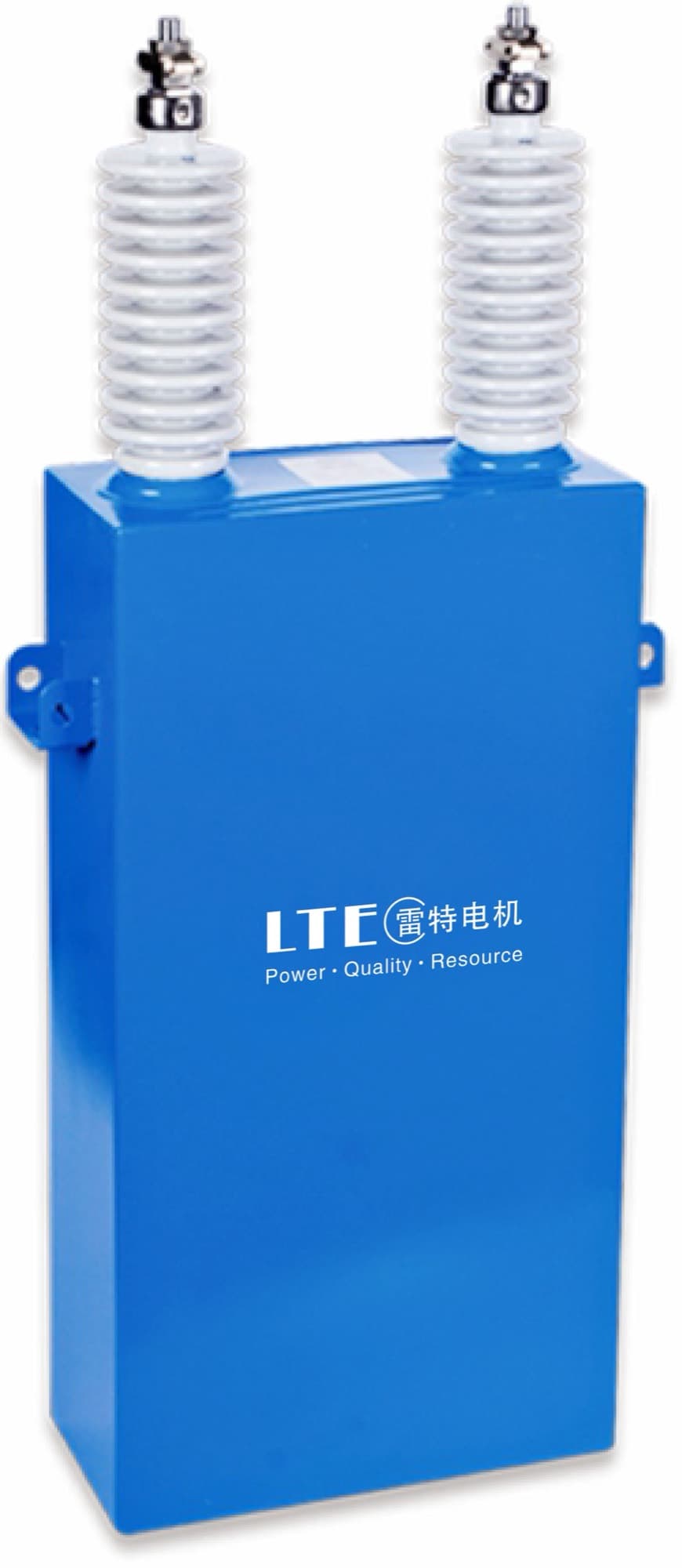

| Capacitors | Low-voltage and medium-voltage power capacitors |

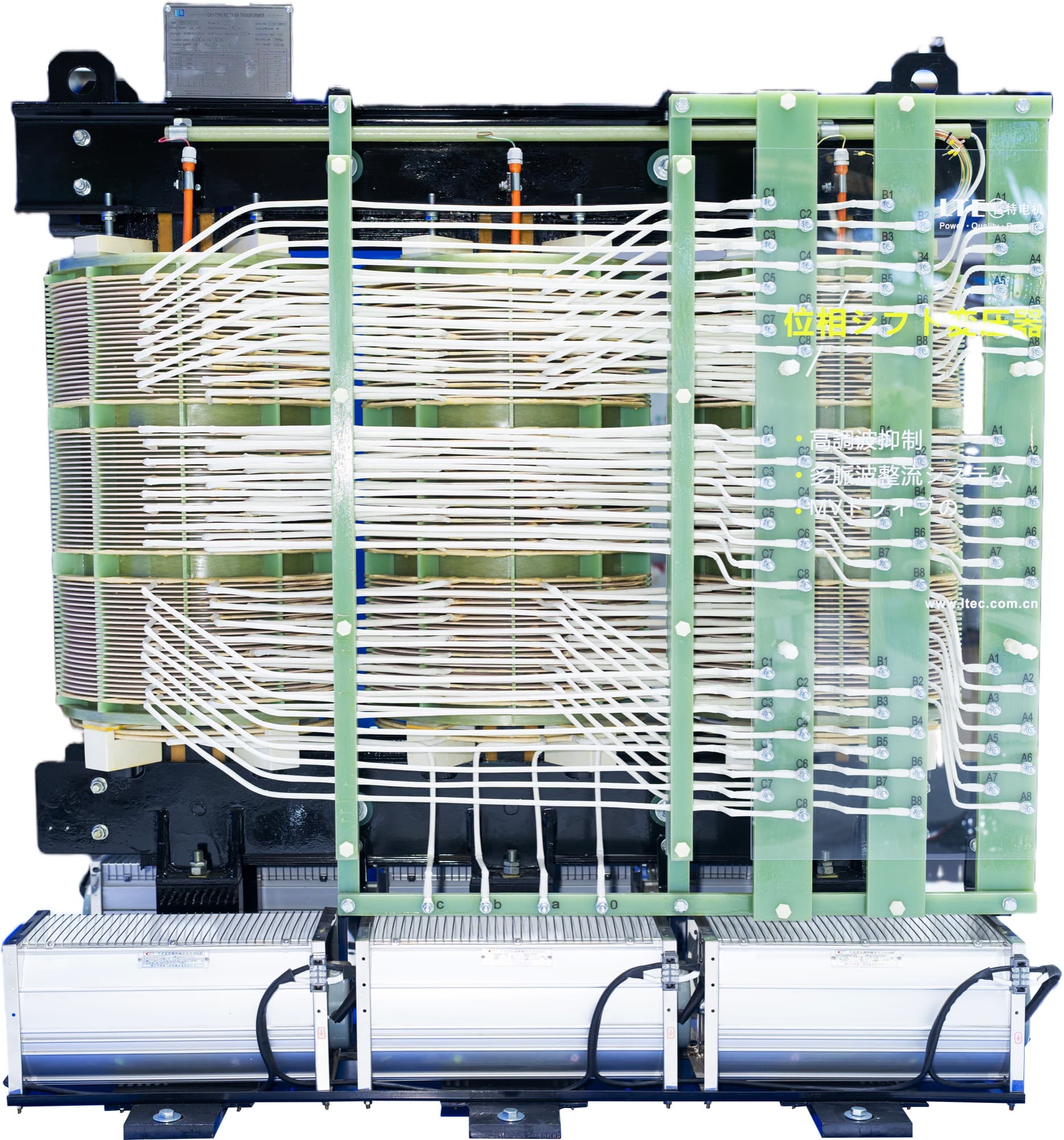

| Rectifier / phase-shifting transformers | Up to 35 kV |
Standard features
- ■Harmonic-study support: send us your load list and we size the filter
- ■IEEE 519 compliance packages for utility interconnection
- ■IEC 60831 / relevant IEC standards on capacitor products
- ■Custom impedance, enclosure, and thermal options
Standards & certification
- IEC 60076-6 (reactors)
- IEC 60831 (LV capacitors)
- IEEE 519 application engineering
In production
Need pricing on power quality?
Tell us kVA, voltages, quantity, and timeline. We come back with unit pricing, lead time, and freight within one business day.
